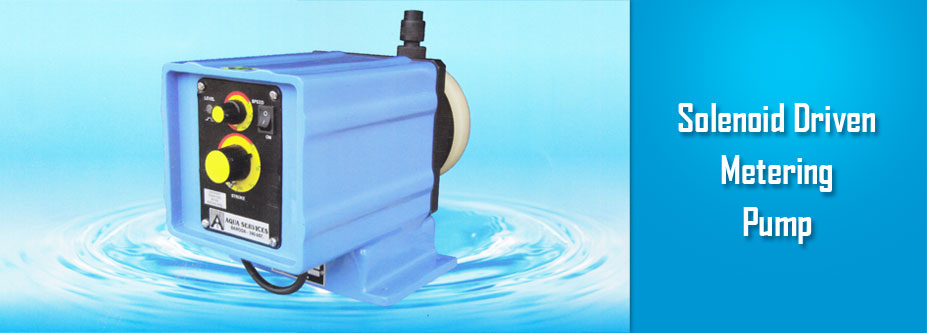

Solenoid Driven Metering Pump
Series AUQA metering pumps are driven by an Electronic circuit comprising of professional PCB & electronic components of proven quality for high reliability to user.
Key Feature
- Mglandless & leakage free diaphragm pumps.
- Solenoid driven aided by professional pulser circuitry.
- Excellent proportional control with higher turndown ratio.
- Fixed INjection frequency (for "Model CA" - 100SPM)
- Adjustable Injection frequency (for "Model CA" - 100SPM)
- Adjustable volume displacement via stroke length adjustment.
- Corrosion resistant glass filled PP Housing
- Unique spacer design for prevention of chemical entry to drive end.
- Teflon faced hypalon diaphragm for long lasting service.
- Liquid ends - Polypropylene (PVC/SS316/PTFE - as optional)
- Integrated low level swtch (as optional)
- Low Power consumption.
- Modular design occupying less foot print & light weight.
- Section lift up to 1.5 m Wc.
- Steady state accuracy : +/-3%
- Repeatability : +/-3%
Industrial Application
- Chlorination
- Pharmaceutical
- Paper & Textiles
- Refineries & Fertilizers
|
- Chemical & Petrochemical
- Water & effluent treatment
- Food & Beverages
- Thermal Power Plants
|
Standard Material Construction
- Tank Size : REcommended size is 100 Liters should have atleast 24 Hours Chemical storage
- Average Power Consumption : Less than 25 watts.
- Space Requirement : 600 mm X 600 mm
- Man Power : Does not Warrant special operators / personnel.
| Housing |
GFPP |
Suction Deschanrge Fittings |
PVC |
| Specer |
GFPP |
Pressure Relief Valve |
PVC |
| Head |
Polypropelene (PP) |
Injection Check Valve |
PVC |
| Diaphragm |
Teflon Faced Hypaion |
Tubing |
LDPE |
| Ball |
Glass |
Elastomers |
Viton |
Capacity Chart
| Model |
Max Pr. (in Kg./Sq. Cm.) |
Max Capacity (in LPH) |
| CA 04 06 |
04 |
06 |
| CA 05 05 |
05 |
05 |
| CA 01 12 |
01 |
12 |
| CA 02 10 |
02 |
10 |
| CA 10 02 |
10 |
02 |
| CA 12 01 |
12 |
01 |
