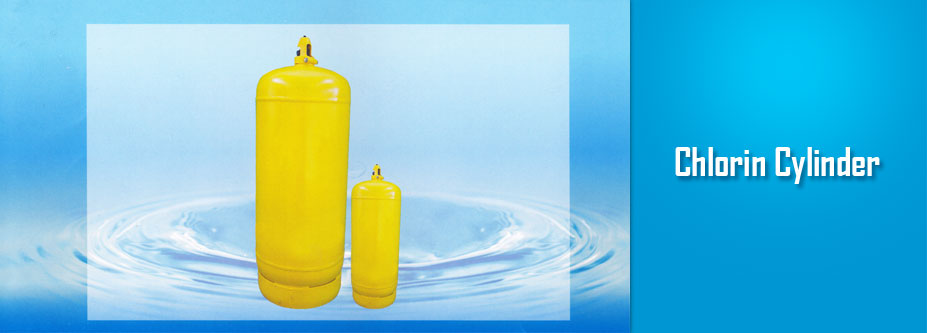

Chlorine Cylinder

Model	UNIT	JMC - 42C	JMC - 55C	JMC - 84C	JMC - 100C	JMC - 118C
Type	-	Three piece welded	Three piece welded	Three piece welded	Three piece welded	Three piece welded
Specification	-	IS:3196 (Pt. 4) 2001	IS:3196 (Pt. 4) 2001	IS:3196 (Pt. 4) 2001	IS:3196 (Pt. 4) 2001	IS:3196 (Pt. 4) 2001
Water Capacity + 3%-0%	Lts.	42	55	84	100	118
Hydrostatic Stretch Test Pressure	Kgf/Cm2	30	30	30	30	30
Pneumatic Leakage Test Pressure	Kgf/Cm2	10	10	10	10	10
Maximum Working Pressure	Kgf/Cm2	19.9	19.9	19.9	19.9	19.9
Gas Capacity	Kg.	50	65	100	120	140
Tare Weight (Approx.)	Kg.	40	50	65	72	82
Outer Diameter	mm.	368	368	368	368	368
Inner Diameter	mm.	356	356	356	356	356
Wall Thickness	mm.	6	6	6	6	6
Lenght Without Valve & Cap (Approx.)	mm.	565	700	980	1150	1350

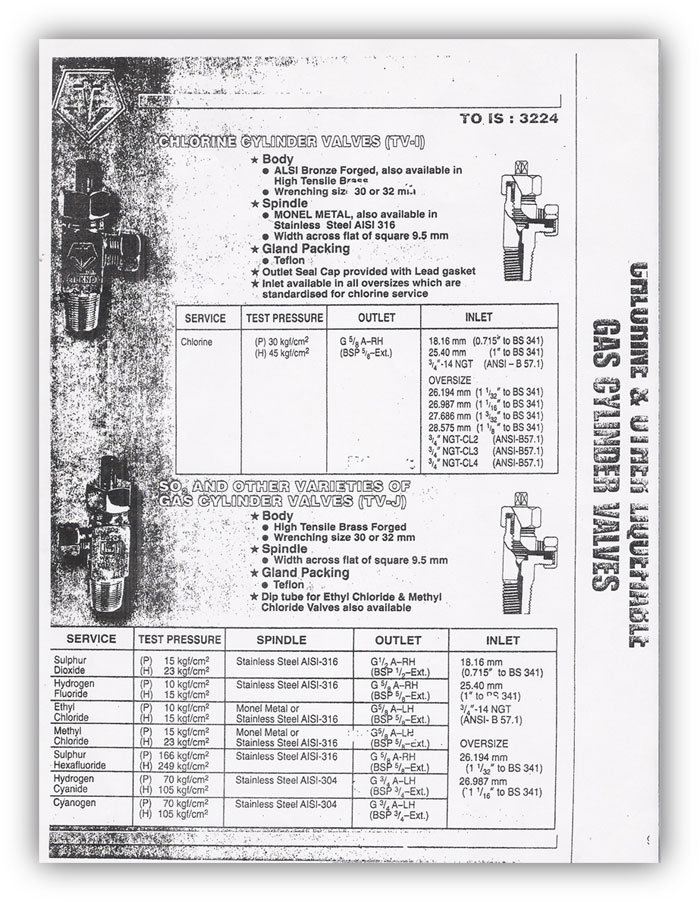

Valve Conforms To	mm.	IS:3224	IS:3224	IS:3224	IS:3224	IS:3224
Scope of Supply : Empty Chlorine Cylinders fitted with valve, guard, certified by BIS and approved by CCE.
