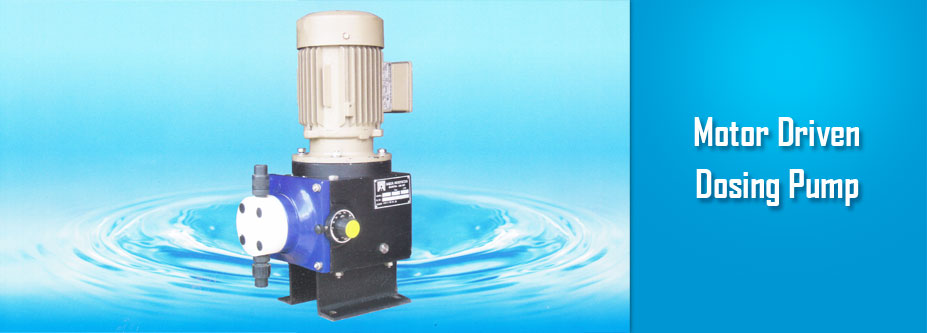

Motor Driven Dosing Pump
Series "FM" reciprocating type Mechanically actuated diaphragm dosing pumps are driven by a 0.5 HP, 1440 RPM Squirrel Cage induction motor (Input power supply 415V/ 3Phase/50HzAC)
- Mechanically actuated Diaphragm
- HIgh precision balls and seal, rings for accuracy
- Manual flow control, adjustable while running through stroke length adjustment knob.
- Composite PTFE Hypalon diaphragm for long life.
- Motor driven worm shaft & worm wheel drive.
- Liquid end material of construction in PP (Also in SS 316, PVC and Teflon on request)
- Light weight Aluminium alloy body.
- Modular design occupying lees foot print.
- Steady state accuracy +_2%
- Repeatability +_3%
- Turn down Ration 10:1
Industrial Application
- Chemical & Petrochemical
- Paper & Textiles
- Thermal Power Plants
- Food & Beverages
- Chlorination
- Water & effluent treatment
- Refineries & Fertilizers
- Pharmaceutical
Standard Material of Construction
| Housing |
Aluminium |
Suction Deschanrge Fittings |
PVC |
| Specer |
Cast Iron |
Pressure Relief Valve |
PVC |
| Base Frame |
MS |
Injection Check Valve |
PVC |
| Head |
Polypropelene (PP) |
Y Strainer (or) Foot Valve |
PVC |
| Diaphragm |
Teflon Faced Hypaion |
Tubing |
LDPE |
| Ball |
Glass |
Elastomers |
Viton |
Capacity Chart
| Model |
Max Pr. (in Kg./Sq. Cm.) |
Max Capacity (in LPH) |
| FM 10 35 |
10 |
35 |
| FM 08 45 |
08 |
45 |
| FM 08 60 |
08 |
60 |
| fm 05 100 |
05 |
100 |
