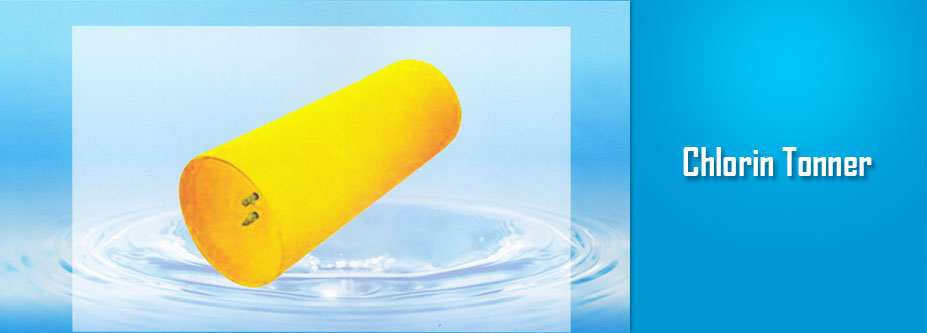

Chlorine Tonner
| Design Code |
Asme-Section-VIII-DIV.1 Emended 20004-05. |
| Design Pressure |
20.771 Kg/Sq. CM [305 PSIG] |
| Design Temperature |
Suitable for Temp Up to 65/10 Degree C |
| Radiography |
100% For all Welded Seams, By X-Ray Machine Only |
| Heat Treatment |
Fully Stress Relieved |
| Corrosion Allowance |
1.6mm (1/6")Minimum |
| Water Capacity [Approx] |
769.4 Kgs [1696.23 16s] |
Chlorine Capacity [Approx]
Normal Capacity |
916 Kgs [2019.43 16s] |
| Approval of Design By |
1. LLYOD's Register Asia 2. Chief Controller of Explosive, Govt. Of India. |
| Inspection By |
LLYOD's Register Asia |
| Material of Construction |
C. C. Plate - SA 516 GR. 70 |
| Shell Thickness "S" |
12mm |
| Dished Ends Thickness "T" |
14mm [Normal] |
| Overall Length "L" |
2060 + 12mm |
| Diameter |
774mm ID, 798mm OD |
| Shape of Domes |
Concave with Chime as per CFR 49. Both end inwar Curved |
| Tare Weight |
625 Kgs [1377.88 16s] Approx |
| Education Pipe |
1/2 NB SCH 80 |
Standard accessories to be provied with each container will be as follows. [All in fitted conditional]
- 2 No. Valve, Size-25.4mm [1"] in accordanc with B-341-Part-1 & IS-3224
- 2 No. Valve out let cap of brass.
- 2 No. Brass plugs to blank the inspection opening
- 1 No. Valve Protection bonnet
